EC120 Crew Seat Assy, 159 Series

Description: Crew Seat Backrest and Bottom Assembly, cover and cushion

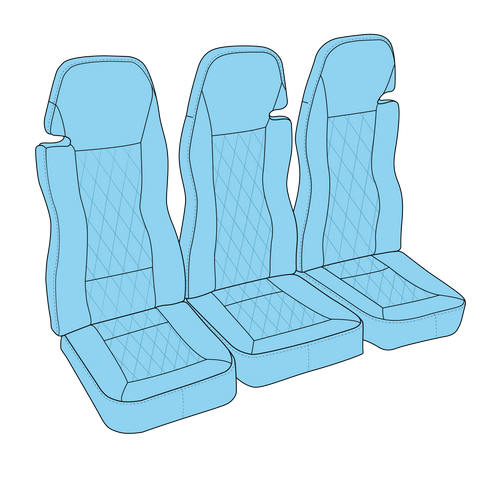

Design: Sicma Seat - design your own seat using our unique design tool. Please note, the configurator shows the 1 piece seat design, but this product is actually supplied as a split backrest and bottom, as shown in the pictures below.

Assembly Materials: Covers in high quality aviation leather, and cushioning in Genlite high comfort foam. Leather covers are supplied already fitted to the foam cushion, and velcro attachments are on the back of the squab for fitting to the existing seat structure.

Part Numbers:

Backrest Cover - EPA-2302-11-11C-14-010-GEN

Backrest Cushion - EPA-159700-10-GEN

Bottom Cover - EPA-2302-11-12C-11-010-GEN

Bottom Cushion - EPA-159700-9-GEN

Aircraft Eligibility: EC120 (Fitted with Sicma Aero Seat P/n: 1591718-06/15/31)

Design Approval: EASA, TCCA, FAA accepted

Complies with:    CFR 14 27.853(a), TSO C127a

Qty: Per seat
