A152 Aerobat Seat Upholstery (1978-85)

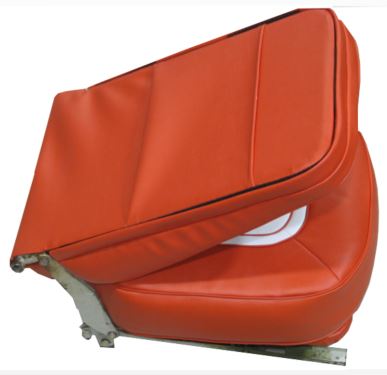

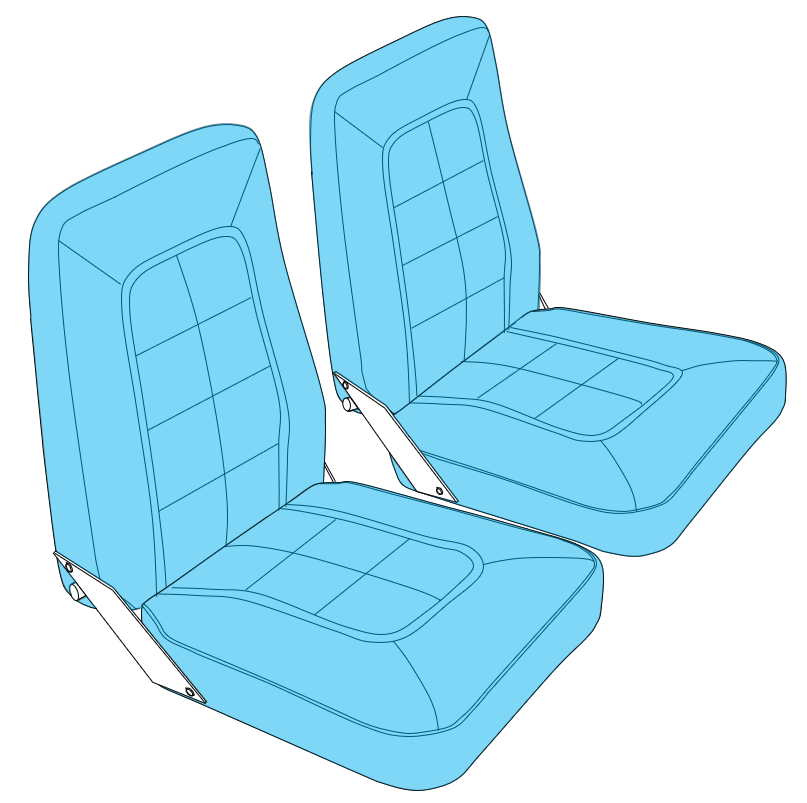

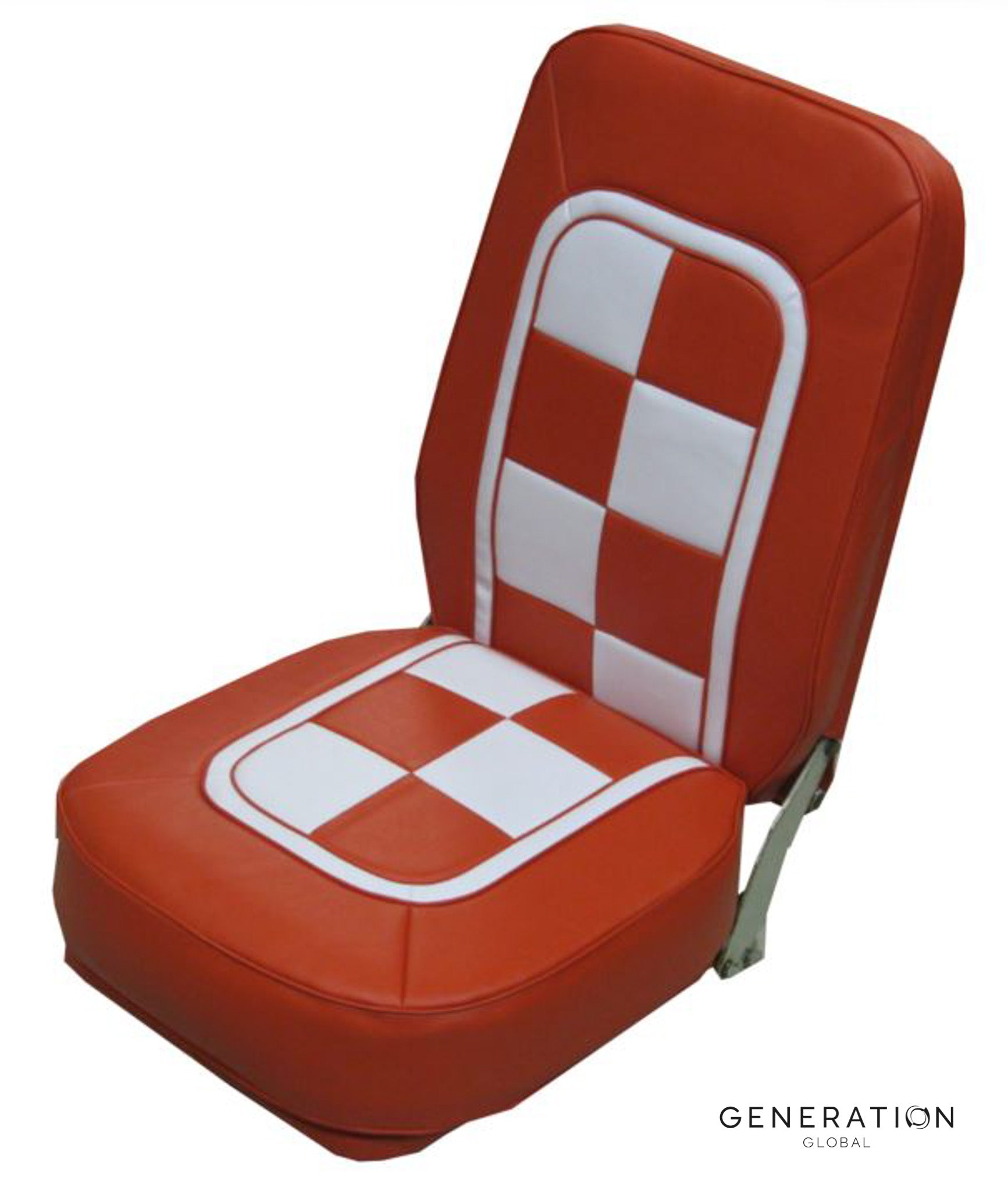

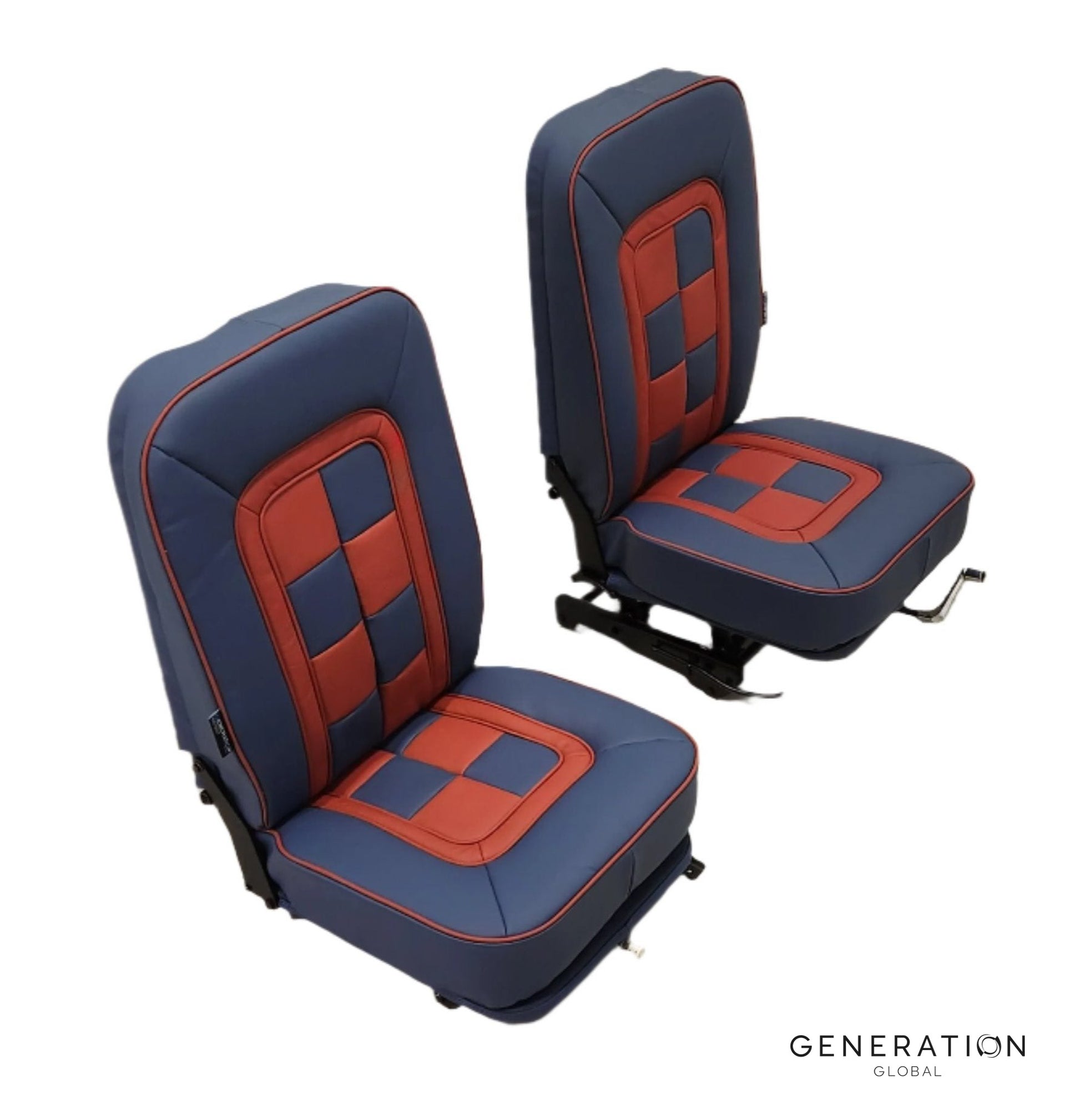

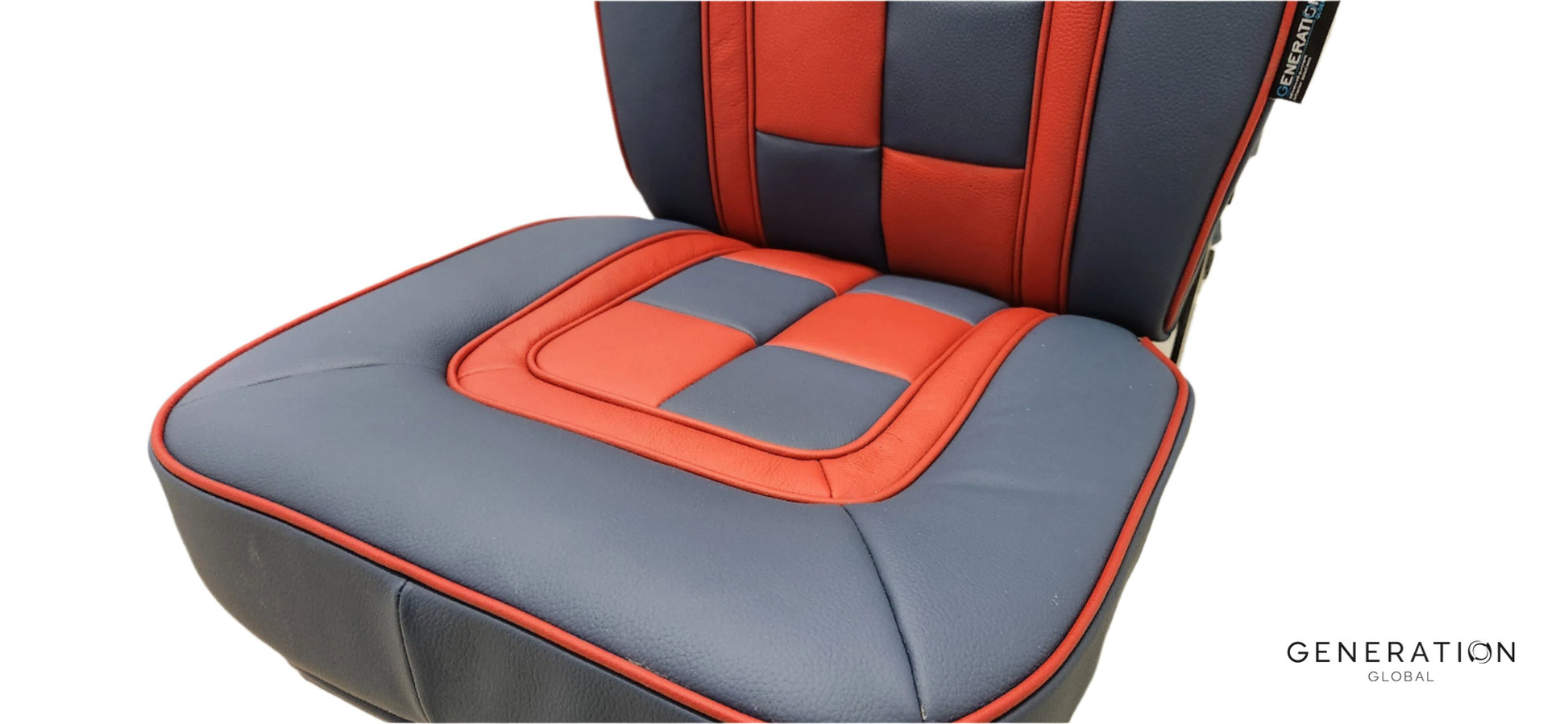

Description:  Pilot and Co-pilot Seat Upholstery Assy - backrest & bottom frame covers, seat covers, cushions and diaphragms.

Assembly Materials: Design matches that of the OEM Aerobat seats - frame and seat covers in high quality aviation leather, cushioning in Genlite high comfort foam, and seat diaphragms in durable, lightweight polyester fabric.

Features: The seat diaphragms are to be stretched over the existing frames with a contact adhesive, frame covers are fitted to the frame, and finally the seat cover/cushion velcros onto the frame cover. Covers have been designed so minimal fitting and manipulation is required for a perfect fit. (Excludes supply of seat frames and contact adhesive).

Part Number: EPA-04140()()-()()-GEN

Aircraft Eligibility: Cessna A152

Installation Required: Yes

Complies with:   CFR 14 23.853(a)

Qty: 2 seats - backrest & bottom frame and seat covers, cushions and diaphragms.
